Products Description

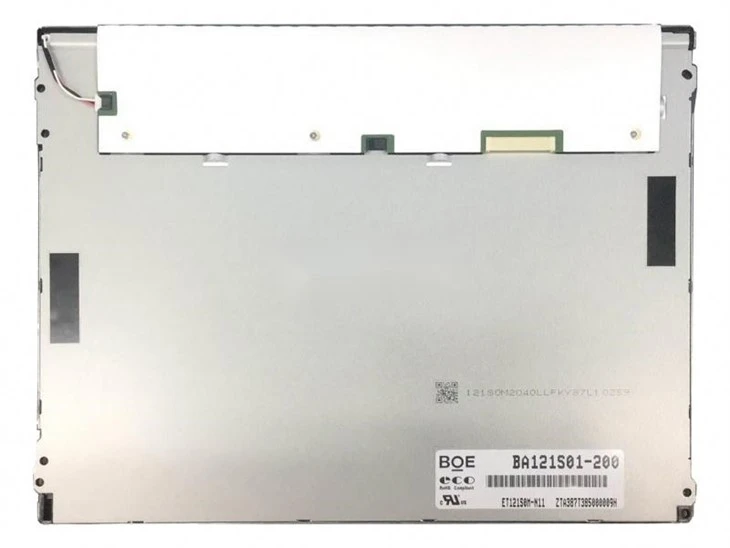

BA121S01-200 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 279(W)×209(H)×9.3(D) mm, viewing area size of 249.05(W)×188.30(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 500g (Max.). As a TN, Normally White, Transmissive LCM product, BA121S01-200 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. BA121S01-200 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Parameter
|
NO. |
Product name |
BOE LCD module BA121S01-200 |
|
1 |
Display type |
a-Si TFT-LCD, LCD module |
|
2 |
Screen Size |
12.1 inch |
|
3 |
Interface Type |
20 pins LVDS (1 ch, 6/8-bit) , 端子 |
|
4 |
Pixel Format |
800(RGB)×600, SVGA, 82PPI |
|
5 |
Luminance |
400 cd/m² (Typ.) |
|
6 |
Display Area |
246(W)×184.5(H) mm |
|
7 |
Operating Temperature |
-20 ~ 70 °C |
|
8 |
Storage Temperature |
-30 ~ 80 °C |
|
9 |
Contrast |
800:1 (Typ.) (透射) |
|
10 |
Apparent dimension |
279(W)×209(H)×9.3(D) mm |
|
11 |
Response time |
30 (Typ.)(Tr+Td) ms |
|
12 |
Supply voltage |
3.3V (Typ.) |
|
Reminder: For detailed information and quotation, please contact customer service to obtain. |
||
Features
0.5T Glass(Single);
Module Design
6/ 8bits LVDS data input selection
Thin and light weight
High luminance and contrast ratio, low reflection and wide viewing angle
RoHS compliant
