Products Description
EV121X0M-N10 is a high-performance LCD display module that offers a resolution of 1024x768. The display area measures 245.76(W) x 184.32(H) mm . This LCD display module has a high brightness of 500 and comes with an LVDS interface and a 20PIN connector for easy connectivity.
The EV121X0M-N10 also boasts a quick response time of 25 (type .)(Tr+Td) ms, making it ideal for use in a range of applications. This display module runs on a low power voltage of 3.3V (type .), thus providing energy efficiency and cost-effectiveness.
With its advanced features and robust design, the EV121X0M-N10 is an excellent LCD display module solution for a wide range of industrial, medical, and gaming applications. Its high brightness, low power consumption, and fast response time make it an optimal display solution for demanding environments. This module is sure to add value to your applications and enhance user experience, making it a reliable and beneficial investment.
Products Description
|
NO. |
Product name |

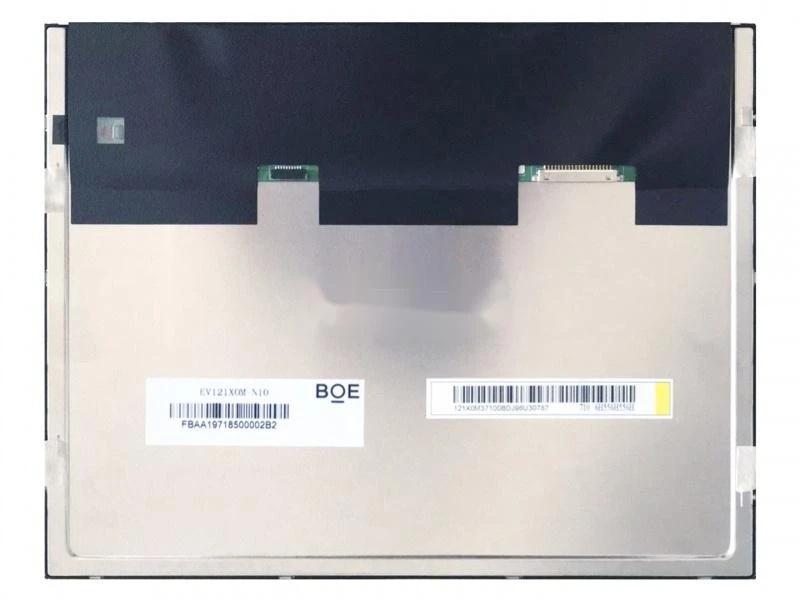

12.1 inch BOE LCD module EV121X0M-N10 |
|
1 |
Display type |
a-Si TFT-LCD, LCD module |
|
2 |
Screen Size |
12.1 inch |
|
3 |
Interface Type |
LVDS (1 ch, 8-bit) , 20 pins Connector |
|
4 |
Pixel Format |
1024(RGB)×768, XGA 105PPI |
|
5 |
Luminance |
500 cd/m² (Typ.) |
|
6 |
Display Area |
245.76(W)×184.32(H) mm |
|
7 |
Operating Temperature |
-20 ~ 70 °C |
|
8 |
Storage Temperature |
-30 ~ 80 °C |
|
9 |
Contrast |
1200:1 (Typ.) (TM) |
|
10 |
Apparent dimension |
260.5(H)×204(V) ×9.2(D) mm |
|
11 |
Response time |
25 (Typ.)(Tr+Td) |
|
12 |
Supply voltage |
3.3V (Typ.) |
|
Reminder: For detailed information and quotation, please contact customer service to obtain. |
||
About Us
Shenzhen Zhongchuangxiang Technology Co., Ltd. is a company specialized in the R&D, design, production, and sales of 12.1-inch displays. Our product lineup includes LCD displays, OLED displays, serial port screens, original screens, touch screens, and laptops. We can also customize capacitive or resistive touch screens according to customer needs, and provide driver boards with different interfaces. We control the entire production process to ensure that the quality of our products meets the specified standards and that raw materials are in line with requirements. We strive to maintain a positive and uplifting tone in our articles and avoid any negative content.
Common problems
Product FAQ
internal pollution
The phenomenon is black spots, stains
scratch
The phenomenon is black line,
white line, line scratching
color uneven
LCD color uneven, in the middle rainbow or bar rainbow and color stripes uneven
Background color mismatch
the general phenomenon is that the overall color of the LCD is very different from the overall color of other LCDS
Packing Details
|
Box Type |
Pcs/Box |
Box Qty |
Package LWH(mm0 |
G.W(kgs) |
Volume (m³) |
|
Inner box |
3 |
1 |
N/A |
N/A |
N/A |
|
Outer box |
18 |
6 |
N/A |
N/A |
N/A |
|
Paiiet |
288 |
96 |
N/A |
N/A |
N/A |
