Parameter |
Specification |
|
Size |
32.0 inch |
|
Resolution |
1920(RGB)×1080 (FHD), 69 PPI |
|
Display Type |
a-Si TFT-LCD, LCD Module |
|
Interface |
51 pins LVDS (2 ch, 8-bit) |
|
Active Area |
698.4(W) × 392.85(H) mm |
|
Outline Dimension |
716.2(W) × 415.05(H) × mm (typ.) |
|
Brightness |
500 / 800 / 1000 / 1500 cd/m² (Customizable) |
|
Viewing Angle |
89/89/89/89 (CR≥10) – Full viewing angle |
|
Operating Temperature |
0 ~ 50 °C |
|
Storage Temperature |
-20 ~ 60 °C |
|
Color Support |
16.7M colors, 72% NTSC |
|
Drive Voltage |
12.0V (Typ.) |
|
Contrast Ratio |
1200:1 (Typ., transmissive) |
Key Features & Benefits
What really sets this 32 inch high brightness LCD apart is its ability to perform where ordinary screens fail:
- Sunlight Readable Performance – Up to 1500 nits brightness cuts through glare, making content visible even in direct outdoor sunlight (common requirement for digital signage and kiosks).
- Wide Viewing Angle & Excellent Color – Full 89°/89°/89°/89° viewing with ADSDS technology ensures consistent image quality from any angle, plus vivid 16.7M colors.
- Anti-Glare Matte Surface – Haze 1% treatment reduces reflections without sacrificing sharpness – ideal for bright environments.
- Long-Life & Low Maintenance – 30,000-hour WLED backlight + robust design for 24/7 operation in industrial settings.
- Fully Customizable – Brightness, touch type (PCAP/IR), optical bonding, cover glass thickness, interfaces, and even operating temperature range can be tailored.

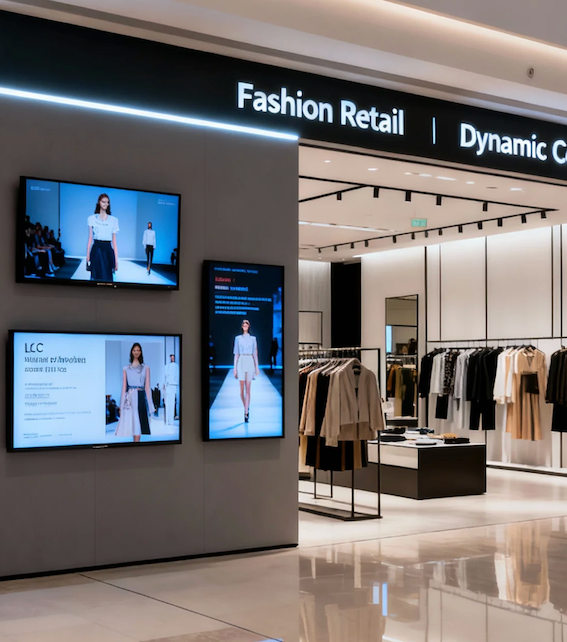

Applications
Our Commitment – Personalized Service
At our factory, we know one size never fits all when it comes to high-brightness LCD modules or industrial displays. That's why everything on this 32-inch high-brightness LCD panel is fully customizable - brightness levels (500–2000+ nits), touch technology (PCAP, IR, or none), optical bonding, cover glass thickness/hardness, anti-glare/anti-reflection coatings, wide-temperature range (-30°C to +80°C or more), custom interfaces (LVDS, eDP, HDMI, MIPI), mounting holes, logo printing, and even special firmware tweaks.
Here's how it works in real life: Just send us a short description of your project - what industry it's for (outdoor signage, EV charging, marine, medical, industrial HMI, transportation, military, etc.), the environment it will face (direct sunlight, high humidity, vibration, extreme temperatures), the mounting method, power budget, and any special requirements (ultra-low power, sunlight-readable with specific contrast, long cable length, etc.).
Our senior LCD engineers (average 10+ years of experience in custom high-brightness LCD projects) will quickly review your needs, suggest the most reasonable technical solution, select the optimal panel + backlight + components combination, and provide a detailed quotation - always aiming for the best balance between performance, reliability, and cost.
FAQ
Q: Is this panel truly sunlight readable?
A: Yes – at 1000–1500 nits with anti-glare treatment, it's designed for direct sunlight visibility, similar to industry-standard outdoor displays.
Q: Can I add touch functionality?
A: Absolutely. We offer projected capacitive (PCAP) or infrared touch options, fully bonded if needed.
Q: What if my project requires higher brightness or wider temp range?
A: No problem – we routinely customize up to 2000+ nits and extended temps (-20°C to +70°C or more).
Q: How long is the lead time for custom orders?
A: Standard modules ship faster; custom versions usually take 4–8 weeks depending on complexity.
Q: Do you provide samples?
A: Yes, we support sample orders for evaluation.
Q: How bright does this 32-inch LCD really need to be for outdoor use?
A: For true sunlight readability (direct sunlight, no shade), we recommend 1000–1500 nits as the sweet spot. Below 800 nits it may still wash out on very bright days; above 1500 nits is excellent but consumes more power and generates more heat. We can customize exactly the level your project needs.
Q: Is optical bonding available?
A: Yes - we provide full optical bonding (LOCA/OCR) to eliminate air gaps, dramatically improve contrast, reduce reflections, and increase shock/vibration resistance. Great for outdoor, marine, and military applications.
