Product Basic Information

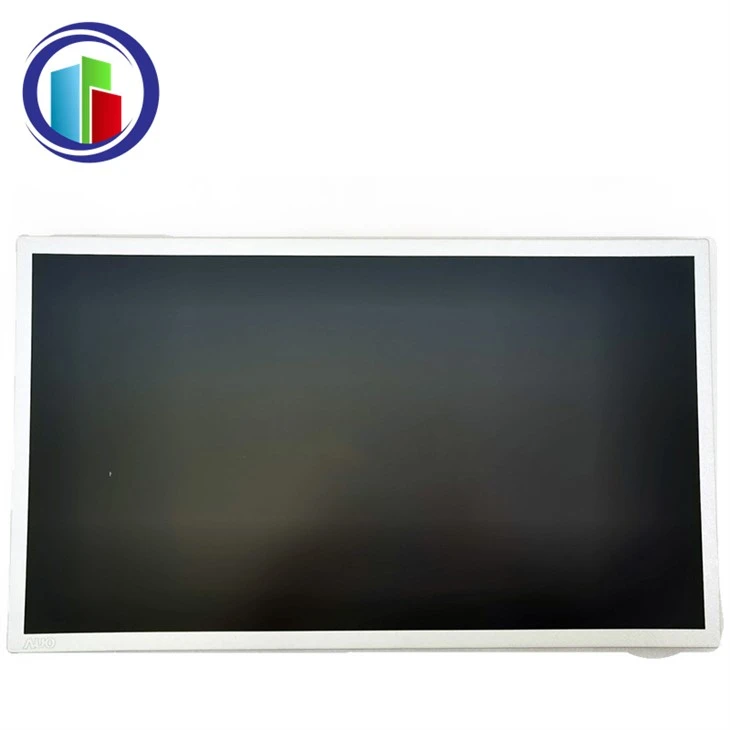

This high brightness monitor is tuned for precision, from its 99% sRGB coverage to the rock-solid 1000:1 contrast that makes subtle tissue differences pop.
| Parameter | Specification |
|---|---|
| Panel Size | 18.5 inches |
| Panel Type | a-Si, TFT LCD Module |
| Resolution | 1920(RGB)×1080 (FHD), 119 PPI |
| Pixel Layout | RGB Vertical Stripe |
| Display Area | 408.96(W) × 230.04(H) mm |
| Outline Dimensions | 430.4(W) × 254.6(H) × 12.5(D) mm |
| Active Display Area | 410.96(W) × 232.04(H) mm |
| Surface Treatment | Anti-Glare, Hard Coating (3H) |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angles | 89/89/89/89 (Typ.) (CR ≥10) |
| Response Time | 10/10 (Typ.) (Tr/Td) ms |
| Display Mode | AHVA, Normally Black, Transmissive |
| Colors Supported | 16.7M, 99% sRGB |
| Backlight | WLED [9S7P], 50K Hours, Includes Driver |
| Weight | 1.20 Kgs (Typ.) |
| Applications | Industrial, Medical Imaging |
| Refresh Rate | 60 Hz |
| Touch Technology | None (Optional) |
| Interface | 30 Pins LVDS (2 ch, 8-bit), Terminal |
| Voltage | 5.0V (Typ.) |
| Operating Temp | -20 ~ 70 °C |
| Storage Temp | -20 ~ 70 °C |
Pro tip: That 1000 cd/m² isn't just hype-it's what makes this 18.5 inch tft lcd module high brightness monitor for medical display a game-changer in lit-up clinics, matching the sunlight readable standards you see in top-tier surgical setups.
Product Function Features
What really sets this medical lcd monitor apart? It's the thoughtful engineering that tackles real-world headaches in healthcare. Picture this: You're reviewing scans in a bustling ER, lights blazing-our high brightness medical display cuts through the glare with 1000 cd/m² punch, ensuring no detail gets lost. The AHVA tech delivers those ultra-wide 178° viewing angles, so the whole team can huddle around without color shifts messing up the read.
- Sunlight Readability on Steroids: For 1000 cd/m² medical lcd monitor, it's perfect for high-ambient environments like operating rooms or outdoor med tents-way beyond standard panels that dim under pressure which is really high nit monitor.
- Vivid, Accurate Colors: 16.7M colors with 99% sRGB medical lcd monitor means true-to-life rendering for everything from ultrasounds to X-rays, helping docs make spot-on calls.
- Built to Last: this medical lcd monitor WLED backlight can lasts 50K hours, and the -20 to 70°C range shrugs off temp swings-ideal for mobile units or sterile storage.
- Quick and Crisp:10ms response time keeps motion blur-free for dynamic imaging, like endoscopic feeds.
- Hassle-Free Integration: LVDS interface plugs right into your existing systems, and the slim 12.5mm profile saves space in tight carts on this high nit monitor.
Application Fields
This isn't just a screen-it's a high brightness monitor in the medical world, popping up wherever clear, dependable visuals are non-negotiable. From radiology suites to field hospitals, our high brightness monitor adapts like a pro, supporting industrial edges too for hybrid setups.
Diagnostic Imaging

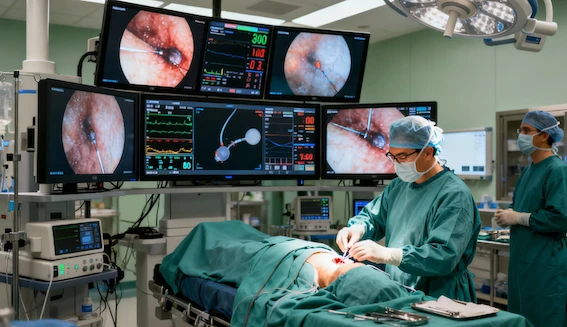

Surgical Environments
Patient Monitoring
Telemedicine and Mobile Clinics
Automobile manufacturing
why choose us
why choose our products
In a sea of off-the-shelf options, we stand out by making customization our tft lcd module and high nit monitor. All our product details are fully tweakable: Need capacitive touch added? A different interface like HDMI? Or scaling for a specific med device footprint? Just tell us your project's field-be it radiology, surgery, or telemedicine-and our pro engineers will craft a tailored LCD scheme. We'll optimize for your exact needs, sourcing the highest-quality components at the most reasonable price. No cookie-cutter solutions here; it's all about getting you the best-fit 18.5 inch high brightness LCD for medical display that scales with your vision.
Q: Is this 18.5 inch high brightness LCD for medical display DICOM compliant?
A: Absolutely-its grayscale and color accuracy supports DICOM Part 14 calibration right away. We can even bundle calibration tools for your setup.
Q: Can I add touch functionality?
A: Yep, 100% customizable. Tell us your industry, and we'll integrate PCAP touch without bloating the profile or price.
Q: What's the lead time for custom orders?
A: Standard stock ships in 7-10 days; customs take 4-6 weeks, depending on tweaks like voltage or backlight mods.
Q: How does it handle high-heat ORs?
A: Flawlessly-rated -20 to 70°C operating, with passive cooling to keep it whisper-quiet and dust-free.
Q: Bulk pricing for medical OEMs?
A: Hit us up with your specs, and we'll quote the fairest deal-optimized for quality without the markup.
