Specifications Table
| Parameter | Details |
|---|---|
| Display Size | 10.95 inch |
| Resolution | 1200 (RGB) × 1920 (WUXGA), 206 PPI |
| Active Area | 147.42 (H) × 235.872 (V) mm |
| Outline Dimensions | 162.92 (H) × 251.37 (V) mm |
| Brightness | 1000 cd/m² (Typ.) – true sunlight readable |
| Contrast Ratio | 1500:1 (Typ.) |
| Viewing Angle | 85/85/85/85 (L/R/U/D) – full ADS wide view |
| Response Time | 25 ms (Max.) |
| Color Depth | 16.7M colors, 72% NTSC coverage |
| Backlight | WLED, 10S4P arrays, 15K hours lifetime, no separate driver |
| Touch Technology | In-Cell Capacitive Touch, SPI interface |
| LCD Interface | 51 pins MIPI (4 data lanes) |
| Power Supply | 1.8V / +5.7V / -5.7V (VDDI/VSP/VSN) |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -30°C ~ +70°C |
| Weight | 205g (Max.) |
| Frame Rate | Up to 90Hz |
Basic Information
This 10.95 inch customize high brightness touch screen is a professional-grade a-Si TFT-LCD assembly using advanced ADS technology (basically IPS-level performance) with true 1000 cd/m² brightness and integrated In-Cell touch – meaning the touch layer is built right into the LCD cell for thinner profile, better optical performance, and zero air gap issues.
Resolution & PPI
Sharp 1200(RGB)×1920 WUXGA at 206 PPI – perfect for detailed GUIs and maps
Brightness & Contrast
Real 1000 nits + 1500:1 contrast, sunlight readable without optical bonding in most cases
Viewing Angle
True all-view 85°/85°/85°/85° – no color shift even from extreme sides
Touch
In-Cell capacitive over SPI interface – super responsive, supports multi-touch gestures
Interface
Clean 51-pin MIPI (4 data lanes) – easy to drive with mainstream SoCs like RK35xx, i.MX, Qualcomm, Allwinner
Operating Temp
-20°C to +60°C (storage down to -30°C) – rugged enough for most outdoor installs
successful cases
Choose the plan that suits you best.
Outdoor Kiosks & Digital Signage
Self-service payment, wayfinding, EV charging stations
Marine & Vehicle Displays
Boat navigation, forklift terminals, agricultural machinery

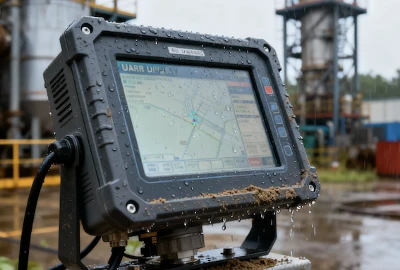

Industrial HMI
Factory floor panels where sunlight comes through windows
Retail & Hospitality
Semi-outdoor menu boards, queue systems
Core strengths
We're not traders – we're the actual LCD manufacturer. Every 10.95 inch customize high brightness touch screen is made to your exact spec. Drop us your project details (industry, required brightness, interface, environment, volume), and our senior engineers will give you the optimal solution at factory-direct pricing. Services include:
Free engineering consultation & fast sampling (7-15 days)
Low MOQ custom runs
Lifetime technical support & driver files
Global shipping + local warehousing options
FAQ
Q: Can I change the interface from MIPI to LVDS or HDMI?
A: Yes, super common. We add the bridge board or redesign the FPC – no extra hassle.
Q: Does the In-Cell touch work with gloves or water on screen?
A: Standard works with thin gloves; we tune the controller for thick gloves or water-reject if you need.
Q: What's the minimum order for customization?
A: Samples anytime, custom runs start at 100-300 pcs depending on changes – talk to us.
Q: Can you add optical bonding or anti-reflective coating?
A: Of course – eliminates reflections and makes it look even sharper outdoors.
