Pixel density is a crucial specification when it comes to display devices, as it significantly impacts the visual experience. In this blog post, we'll explore the pixel density of a 5-inch UART (Universal Asynchronous Receiver-Transmitter) display, and I'll share some insights as a supplier of such displays.
Understanding Pixel Density
Pixel density, often measured in pixels per inch (PPI), represents the number of individual pixels that can be displayed per linear inch of the screen. A higher PPI generally means a sharper, more detailed image, as there are more pixels packed into a smaller area. To calculate the pixel density of a display, we use the following formula:
[PPI = \frac{\sqrt{Width^2 + Height^2}}{Diagonal}]
Where Width and Height are the number of pixels in the horizontal and vertical dimensions of the screen, respectively, and Diagonal is the length of the screen's diagonal in inches.
Pixel Density of a 5-Inch UART Display
The pixel density of a 5-inch UART display can vary widely depending on its resolution. Let's take a look at some common resolutions and their corresponding pixel densities:
800x480 (WVGA)
For a 5-inch display with a resolution of 800x480 pixels, we can calculate the pixel density as follows:
[PPI = \frac{\sqrt{800^2 + 480^2}}{5} \approx 186.2]
This relatively low pixel density may result in a slightly pixelated image, especially when viewing fine details or text. However, it is still suitable for many applications where high-resolution visuals are not required, such as industrial control panels, automotive dashboards, and simple user interfaces.
1280x720 (HD)
A 5-inch display with a resolution of 1280x720 pixels offers a much higher pixel density:
[PPI = \frac{\sqrt{1280^2 + 720^2}}{5} \approx 293.2]
This higher pixel density provides a sharper, more detailed image, making it suitable for applications that require high-quality visuals, such as multimedia devices, gaming consoles, and medical equipment.
1920x1080 (Full HD)
For a 5-inch display with a resolution of 1920x1080 pixels, the pixel density is even higher:
[PPI = \frac{\sqrt{1920^2 + 1080^2}}{5} \approx 441.8]
This extremely high pixel density results in a crystal-clear image, with no visible pixels even when viewed up close. However, it also requires more processing power and bandwidth to drive, which may increase the cost and complexity of the system.
Factors Affecting Pixel Density
In addition to resolution, several other factors can affect the perceived pixel density of a display:
Viewing Distance
The closer you are to the display, the more likely you are to notice individual pixels. For example, a display with a relatively low pixel density may appear sharp when viewed from a distance, but pixelated when viewed up close.
Display Technology
Different display technologies, such as LCD, OLED, and AMOLED, can have different pixel densities and visual characteristics. For example, OLED displays typically offer higher contrast ratios and deeper blacks than LCD displays, which can enhance the perceived sharpness and clarity of the image.
Anti-Aliasing and Image Processing
Anti-aliasing and other image processing techniques can be used to smooth out the edges of pixels and reduce the appearance of pixelation. However, these techniques can also introduce artifacts and reduce the overall sharpness of the image.
Applications of 5-Inch UART Displays
5-inch UART displays are widely used in a variety of applications, including:
Industrial Control Panels
In industrial settings, 5-inch UART displays are often used to provide operators with real-time information about the status of equipment and processes. These displays typically have a relatively low resolution and pixel density, as the focus is on functionality rather than high-quality visuals.
Automotive Dashboards
In automotive applications, 5-inch UART displays are used to display information such as speed, fuel level, and engine temperature. These displays may have a higher resolution and pixel density to provide a clear and easy-to-read interface for the driver.
Medical Equipment
In medical applications, 5-inch UART displays are used to display patient data, such as vital signs and diagnostic images. These displays typically require a high resolution and pixel density to ensure accurate and detailed information.
Multimedia Devices
In multimedia devices, such as tablets and smartphones, 5-inch UART displays are used to provide a high-quality viewing experience for videos, photos, and games. These displays typically have a high resolution and pixel density to support the latest multimedia content.
Other UART Display Sizes

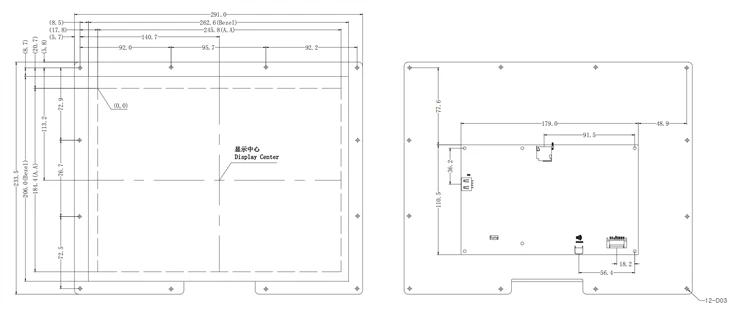

In addition to 5-inch UART displays, we also offer a range of other sizes, including 15 inch UART screen, 6.8 Inch UART Display, and 12.1 inch UART screen. Each size has its own unique characteristics and applications, so be sure to choose the one that best suits your needs.
Contact Us for Procurement
If you're interested in purchasing a 5-inch UART display or any of our other products, please don't hesitate to contact us. Our team of experts is available to answer your questions and help you find the right display for your application. We offer competitive pricing, high-quality products, and excellent customer service, so you can be confident that you're making the right choice.
