Products Description

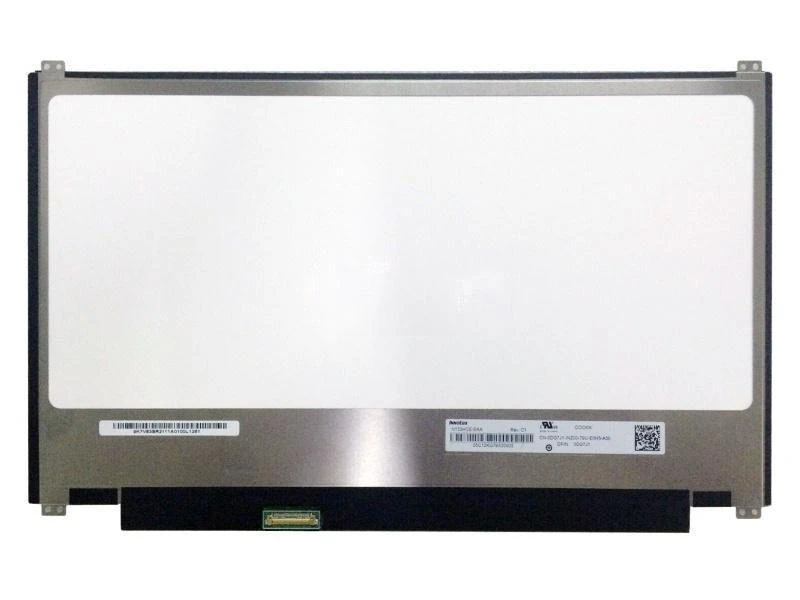

N133HCE-EAA is a 13.3 inch a-Si TFT-LCD display module product released by Innolux. The module has a resolution of 1920 (RGB) × 1080 (FHD) with an effective area of 293.76(W) × 165.24(H) mm. The outer dimensions of the module are 300.26(W) × 187.72(H) × 3(D) mm and it features an anti-glare surface treatment. The module has a brightness of 250 cd/m² with a 45% (NTSC) color gamut performance and has a lifespan of 15,000 hours. The module comes with an LED driver and provides exceptional image quality in a compact and sleek design. Its high resolution and wide color gamut make it ideal for use in consumer electronics, medical equipment, industrial automation, and other industries. Overall, the N133HCE-EAA is a reliable and high-quality TFT-LCD display module that offers exceptional performance and value.
Product Parameter
|
NO. |
Product name |
Innolux N133HCE-EAA |
|
1 |
Display type |
a-Si TFT-LCD, LCM |
|
2 |
Screen Size |
13.3 inch |
|
3 |
Frequency |
60Hz |
|
4 |
Pixel Format |
1920(RGB)×1080, FHD, 166PPI |
|
5 |
Luminance |
700:1 (Typ.) (TM) |
|
6 |
Display Area |
293.76(W)×165.24(H) mm |
|
7 |
Operating Temperature |
0 ~ 50 °C |
|
8 |
Storage Temperature |
-20 ~ 60 °C |
|
9 |
Contrast |
1000:1 (Typ.) (TM) |
|
10 |
Apparent dimension |
300.26(W)×187.72(H)×3(D) mm |
Product feature
WLED backlight, which represents white LED backlight, and uses white LED to provide backlight for the display. WLED backlights are known for their energy efficiency and durability, making them a popular choice for many modern electronic devices.
Built-in LED driver. This gives you better control over the brightness of the display and can improve the overall image quality. In addition, WLED backlights typically utilize reverse I/F, which helps reduce interference and improve signal quality.
Matte, which helps reduce glare and reflection on the screen, making it more comfortable to watch for a long time. In addition, eDP1.2 technology allows for faster data transfer rates and improved color accuracy.
Top and bottom notch (Ver1.0) or no notch (Ver3.2). These grooves can be useful when mounting a display in certain types of devices or housings.
Transport service
As a leading company specializing in the manufacture of LCD displays, we take the transportation of fragile goods very seriously and take measures to ensure the safety of transportation.
Our shipping process starts with careful packing. We use high quality materials to pack our exhibits, ensuring that they are well protected during transport. Our packaging materials can also withstand any rough handling that may occur during transportation.
Once the product is packed, we work with reputable shipping companies that specialize in the transportation of fragile items. These companies have the necessary equipment and expertise to handle fragile items and ensure that our exhibits are not damaged during transportation.
We also closely monitor the shipping process to ensure our displays arrive safely and on time. We track our shipments in real time and communicate with shipping companies to resolve any issues that may arise.
In summary, our company is committed to ensuring the safe and timely delivery of our LCD monitors. We have many safeguards in place to ensure that our products arrive at their destinations intact and we constantly strive to improve our transportation services to meet the needs of our customers.
Quality control
When it comes to controlling the quality of LCD displays, companies strive to maintain a positive approach by focusing on proactive measures rather than negative ones. The quality control process typically involves a series of checks and tests to ensure that each display meets strict performance standards. These tests may include inspections for visual defects, color accuracy, contrast levels, and other key parameters.
In addition to testing the quality of the displays themselves, LCD display companies also focus on quality throughout the entire production process. This includes carefully selecting suppliers for raw materials, conducting detailed inspections of incoming materials, and utilizing advanced production systems to ensure consistency and accuracy.
To further maintain quality, LCD display companies implement robust quality management systems. These systems typically involve well-defined procedures for monitoring and controlling various aspects of the production process, as well as detailed documentation and record-keeping to ensure accountability and traceability.
By focusing on proactive quality measures, LCD display companies are able to deliver high-performance displays that meet the strict demands of a wide range of industries, from consumer electronics to medical and automotive applications. With ongoing investments in quality control, these companies remain at the forefront of the industry, delivering innovative and reliable displays to customers around the world.
About Us
Shenzhen ZhongChuangxiang Technology Co., LTD., specializing in the wholesale and sales of LCD screens, located in Xixiang Street, Baoan District, Shenzhen, provides a variety of LCD screens to meet various customer needs, including TFT LCD, OLED, etc. The company is committed to providing customers with high quality, reliable and affordable products and services.
The company's office environment is spacious, clean and well-organized, providing a comfortable and professional atmosphere for employees' work and customers' visits. The company has a sound financial position, which enables it to maintain a stable product supply and offer customers competitive prices.
In order to ensure product quality, the company has established a strict quality control system. Before delivery, all products are tested and inspected to ensure they meet the highest standards of performance and durability. The company also provides a complete after-sales service, including technical support, repair, replacement, to ensure customer satisfaction and loyalty.
Shenzhen ZhongChuangxiang Technology Co., Ltd. is a trustworthy professional LCD screen supplier. The company is committed to providing customers with quality products, services and support. The company has excellent office environment, good financial condition, quality control system and after-sales service, and has won a good reputation in the industry, becoming the first choice for customers looking for reliable LCD screen suppliers.
