Parameter |
Specification |
|
Size |
12.1 inches |
|
Resolution |
1024(RGB)×768, XGA, 105PPI |
|
Display Type |
a-Si TFT-LCD, LCM |
|
Interface |
LVDS (1 ch, 6/8-bit), 20 pins Connector |
|
Active Area |
245.76(W)×184.32(H) mm |
|
Outline Dimension |
260.5(W)×204(H)×8.9(D) mm |
|
Brightness |
500/800/1000/1500 cd/m² (Typ.) (Customizable) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Operating Temperature |
-30 ~ 85 °C; |
|
Storage Temperature |
-30 ~ 85 °C |
|
Vibration Resistance |
2.9G (28.4 m/s²) |
|
Drive Voltage |
3.3V (Typ.) |
|
Contrast Ratio |
900:1 (Typ.) (TM) |
Key Features & Benefits

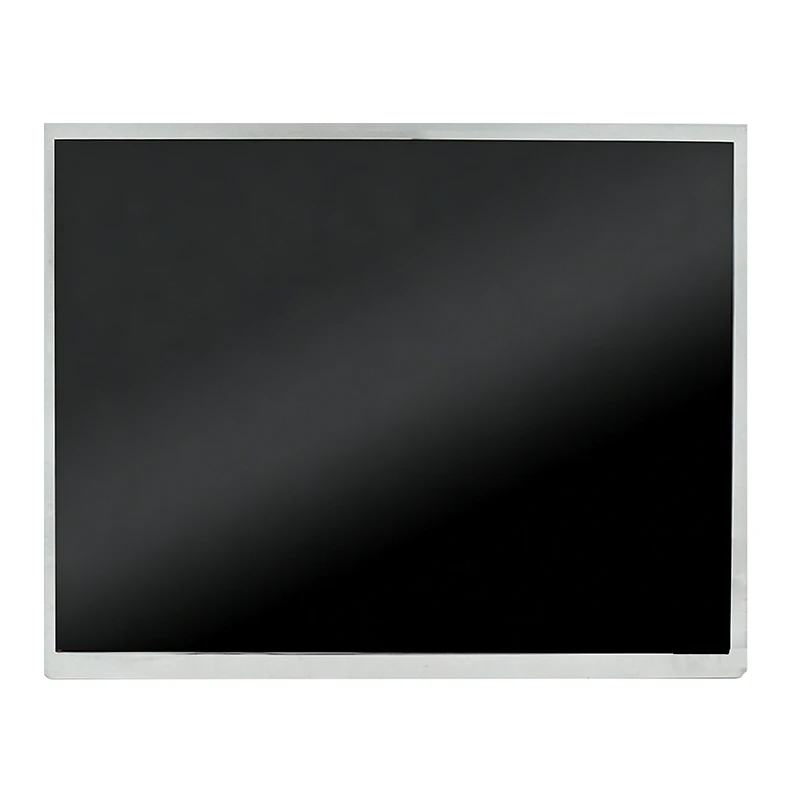

When it comes to functional excellence, this 12.1 inch high-brightness LCD touch panel shines-literally. Its high brightness levels, customizable up to 1500 cd/m², make it ideal for sunlight-readable applications, ensuring your content stays crisp and visible outdoors. The IPS Pro mode offers full viewing angles of 85 degrees from all sides, so users get consistent quality no matter the perspective. With a fast 30ms response time and support for up to 16.7 million colors at 72% NTSC, this high-brightness LCD panel handles vibrant visuals smoothly. The matte surface with hard coating reduces glare and adds scratch resistance, while the wide operating temperature range from -30 to 85°C means it thrives in extreme conditions. Remember, every detail of this high-brightness LCD panel can be customized-just tell us about your project's industry, like automotive or medical, and our engineers will design the perfect scheme at a price that fits your needs for the most suitable, high-quality outcome.
Applications
Our Commitment – Personalized Service
Backed by industry standards, this 12.1 inch high-brightness LCD touch panel aligns with proven technologies seen in similar products from leading manufacturers. For instance, comparable panels often feature optical bonding for enhanced clarity, and our customizable brightness matches sunlight-readable demands in real-world tests. With a 30K-hour LED lifespan and robust vibration resistance up to 2.9G, it exceeds typical expectations for longevity. User feedback from B2B sectors highlights its reliability, much like reviews on high-brightness LCD panels praising their performance in extreme conditions. This evidence underscores why it's a smart choice for your high-brightness LCD needs.
At our core, we offer more than just a product-we provide thoughtful service tailored to your success. From initial consultation to post-delivery support, our team ensures a smooth experience. If you're integrating this 12.1 inch high-brightness LCD touch panel, we'll guide you through customization: share your industry details, and our professional engineers will create an optimized LCD scheme. We commit to the most reasonable pricing for the highest-quality, best-suited solution, with quick turnaround times and dedicated technical assistance. Your satisfaction drives us.
To make things even better, every element of our 12.1 inch high-brightness LCD touch panel is fully customizable. Whether you need adjustments for brightness, interfaces, or even adding touch capabilities, our experts are here. Provide details on your industry-say, for rugged outdoor use or precise medical imaging-and we'll deliver a bespoke solution that's premium, perfectly suited, and priced reasonably. This flexibility ensures you get the most out of your high-brightness LCD investment
FAQ
Q: Can the brightness of this 12.1 inch high-brightness LCD touch panel be customized?
A: Absolutely! We offer levels from 500 to 1500 cd/m², and all details are customizable based on your project- just let us know the application.
Q: What interfaces does this high-brightness LCD panel support?
A: It uses LVDS (1 ch, 6/8-bit) with 20 pins, but we can adapt it for your needs.
Q: Is touch functionality available?
A: The standard model is without touch, but we can customize it with capacitive or resistive options for your specific industry.
Q: How do I get a customized quote?
A: Simply tell us about your project's domain and requirements; our engineers will design the ideal high-brightness LCD panel at the best price.
Hot Tags: 12.1inch high-brightness lcd touch panel, China 12.1inch high-brightness lcd touch panel suppliers, factory
