Product Basic Information

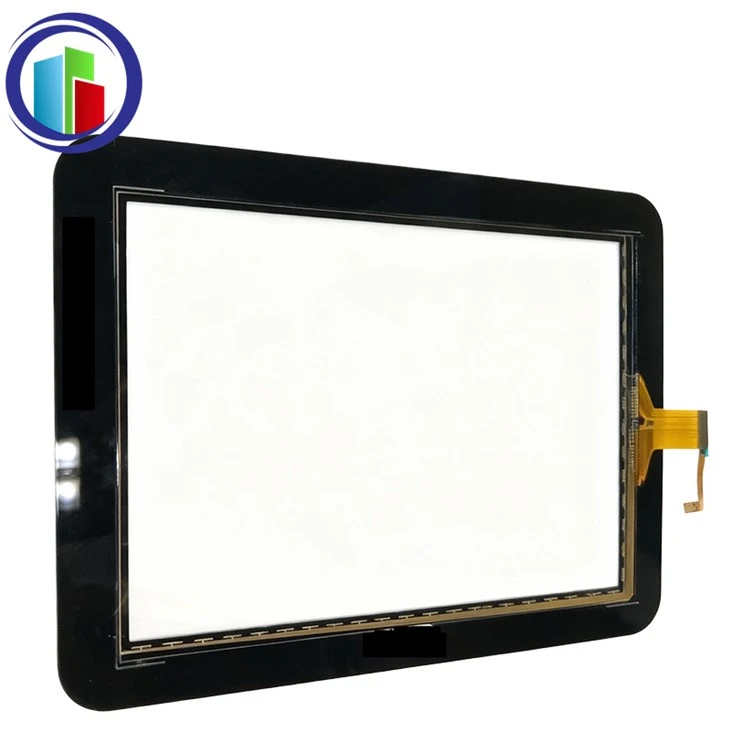

- Model: Custom 8" G+G PCAP Touch Panel (Fully customizable)
- Structure: Glass + Glass (G+G) with COF IC bonding
- Touch Points: Up to 10-point multi-touch (standard 5-10 points)
- Interface: I2C (USB optional with converter board)
- Operating Voltage: 1.8~3.3V
- Transparency: ≥85%
- Surface Hardness: 6H (scratch-resistant tempered glass)
- Total Thickness: 1.8±0.15mm
- Active Area: 107.64×172.22mm
- View Area: 108.64×173.22mm
- Outline Dimension: 141.74×209.15mm
- Main Application: Tablet PCs, industrial HMIs, medical devices, portable instruments
Key Features That Make This 8 Inch Projected Capacitive Touch Screen Panel Stand Out
True Multi-Touch Performance
Smooth 5-10 point gestures – pinch, zoom, swipe – just like your phone, but built for industrial use.
Ultra-Thin & High Transparency
Only 1.8mm total thickness with ≥85% light transmission, so your display stays bright and colors pop.
Industrial-Grade Durability
6H hardened glass shrugs off keys and tools, plus excellent ESD protection for noisy factory environments.
Low Power & Simple Integration
I2C interface means minimal pins on your MCU, super low power draw, and plug-and-play drivers.
Water & Glove Friendly Options
Standard works great dry-handed; we can tune it for thin gloves or water rejection if your project needs it.
COF Bonding
No bulky FPC tails sticking out – clean look and better reliability.
We've supplied thousands of similar 8 inch projected capacitive touch screen panels to tablet manufacturers across Asia, Europe, and the US. One medical device company replaced their old resistive panels – operator complaints dropped 90% because the new PCAP feels "like an iPad". A logistics handheld maker passed 1.5m drop tests first try after optical bonding our panel to their LCD. Another factory running 7×24 kiosks reports zero touch failures after two years in dusty environments.
Our Fully Customizable & Engineer-to-Engineer Service
Every detail of this 8 inch projected capacitive touch screen panel is 100% customizable – no "take it or leave it". Tell us your project: outdoor tablet? Add AR/AF coating and thicker cover glass. Explosion-proof area? We do IK10 impact and special grounding. Vehicle dashboard? Tune for glove + water and wide-temp. Our engineers (15+ years in touch) will design the perfect PCAP solution around your exact LCD, housing, and usage scenario – at the most reasonable price, no unnecessary extras.
FAQ
Q: Does it support glove touch or wet hands?
A: Standard works with bare fingers perfectly. We offer free firmware tuning for thin latex/nitrile gloves or water rejection – just let us know.
Q: Can I use USB instead of I2C?
A: Yes! We include a tiny I2C-to-USB bridge board, or bond the controller directly for USB HID.
Q: What's the difference between air bonding and optical bonding when attaching to LCD?
A: Air gap is cheaper and thinner; optical bonding (OCA) eliminates reflection, improves contrast outdoors, and makes the whole module tougher.
Q: Will it work with thick cover glass (3-5mm)?
A: Absolutely – we often do 3mm+ for vandal-proof kiosks. Sensitivity stays excellent.
Q: Lead time for custom shape or printed border?
A: Stock outline ships in 3-7 days. Custom cover glass/shape: 3-4 weeks.
Q: Can you do irregular/cut-out shapes (e.g., round corners or camera notch)?
A: Yes, we have CNC and laser cutting in-house – send your drawing.
